Marking a major advancement in e-bike technology, eDrive solution expert Ananda has unveiled a new level of intelligence in e-drive systems with the R900 integrated electronic 3-Speed gear Hub Motor system.
The R900 (which just won the Gold Creative Award 2025 at China Cycle)marks a big step forward in e-bike technology, offering exceptional performance, intuitive electronic shifting, and smart gearing optimization. By integrating the motor and 3-speed shifting mechanism into a single housing, Ananda brings a natural, smooth uncompromised riding experience. This innovative solution generates strong interest in the e-bike industry, promising effortless gear shifting, smooth power delivery, and reduced maintenance.
PedalFlow™ Technology: For new generation of riders
The R900 system, delivering 50Nm of torque, shifts perfectly in sync and is specially designed for a new group of riders who want to focus on their ride, not on shifting gears. With this in mind, Ananda has developed PedalFlow™, a patented technology that enables automatic
gear changes for fluid transitions without power loss, even under high torque or heavy load. It allows riders to pedal smoothly while automatic gear transitions happen effortlessly.
Jason Shen, Product Manager at Ananda says: “The signal from the controller to the motor is fully electronic. This offers significant advantages, especially when gearing under heavy load. The R900 automatically downshifts when you apply more torque to the pedal and reduce speed. Shifting is quick and precise, with a rapid 0.2-second response. The system adapts to you, not the other way around. The system is equipped with three gears, gear 1 provides a low, easy-to-control ratio for starting or climbing, while gear 3 boosts speed for cruising.
Precise engineering and proven durability
Extensive prototype testing, conducted jointly by Ananda, confirmed the effectiveness of the R900, highlighting its significantly improved ongevity. All the components in the motor are optimized to avoid wear and maintenance, even during intensive usage scenarios, demonstrating remarkable durability. Thanks to the R900 complete solution, riders can enjoy a maintenance-free ride and fully focus on the experience.

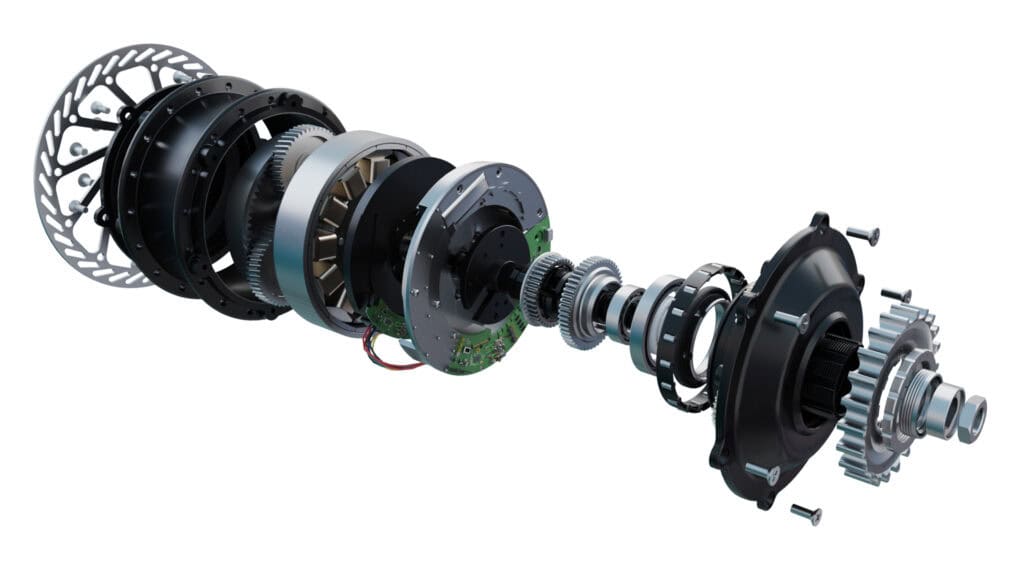

For bike manufacturers, shifting behavior is fully programmable via CANbus, allowing customization for different riding scenarios. Driven by innovation and Ananda’s R&D expertise, the motor and gearing are housed in a robust casing. Equipped with an IPX6 rating, it is protected against high-pressure water jets, while the ultra- durable sealing and waterproof materials keep dirt and mud out from any angle. The strategically positioned external rotor structure enhances heat dissipation, which results in optimal thermal performance. This containment design ensures that shifting remains unaffected by external conditions and always delivers precise performance.
Strong assistance for urban rides
Complementing its advanced gearing capabilities, the R900 delivers powerful support and quiet performance. With 50Nm of torque and weighing only 3.9 kilograms, the motor provides strong, natural assistance at any speed while operating in near silence and maintaining a clean bike design. The R900 is powered by a smart shifting algorithm that continuously analyzes cadence, speed, and torque to optimize gear changes in real time.

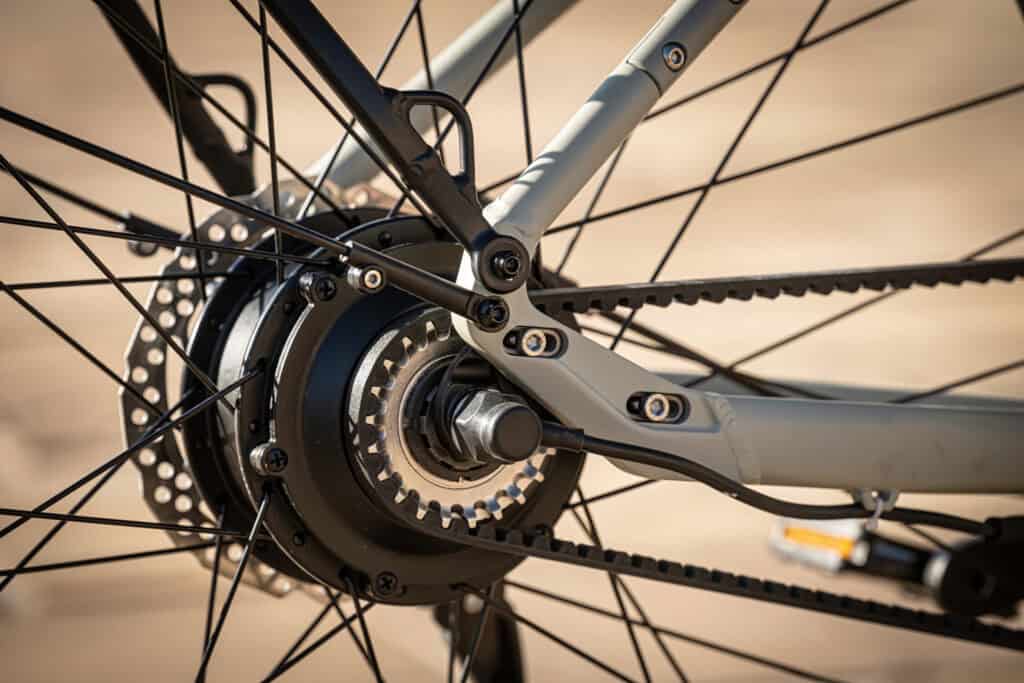

Unlike mechanical systems, its fully electronic shifting ensures instant responsiveness and consistently smooth transitions. The precisely tuned 3-speed ratio progression (1:1 / 1:1.272 / 1:1.619) enables natural acceleration and control across various riding conditions. With compatibility for both chain and belt drive setups and an OLD of 148mm, the R900 gives OEMs flexibility in drivetrain design without compromising performance or efficiency.
Key features:
- Integrated 3-Speed Gear Hub Motor System
- Automatic Electronic Shifting
- Smart shifting algorithm
- PedalFlow™ Technology for natural pedal feel
- Optimized gear ratio progression
- Maximum Torque: 50Nm
- Silent operation: ≤55dB
- OLD 148mm
- Weight 3.8 Kg (chain version) / 3.9 Kg (belt version)
A smart solution for modern e-Bikes
Manufacturers adopting the R900 technology for their future products will enjoy clear competitive advantages in reliability, and safety, directly appealing to a new seamless style of riding. This development reflects Ananda’s commitment to continuously improving the riding experience through smart and integrated solutions.
With the R900 Integrated Electronic 3-Speed Gear Hub Motor System, Ananda not only introduces a new standard—offering riders effortless gear shifting, smooth power delivery, and reduced maintenance—but also provides OEMs with the opportunity to reach a new target group of riders who no longer need to worry about shifting gears.
